ArC2Control emodules

Introduction

ArC TWO Control Panel provides a mechanism for users to create their own experiments using ArC TWO. These are typically specialised control panels that are registered during program startup and are available from the main ArC TWO Control Panel Experiment dropdown menu. We call the control panels external modules or emodules. This document serves as a tutorial to help you develop your own modules.

An emodule is essentially a standalone Python project that exposes a few interfaces that are compatible with the ArC TWO Control Panel. ArC2Control emodules should be placed at the corresponding data directory for your operating system. On Windows these directories are (higher to lower priority)

  • %APPDATA%\arc2control\arc2emodules

  • C:\ProgramData\arc2control\arc2emodules

  • PYTHONDIR\arc2control

  • PYTHONDIR\data\arc2control

and on Linux these are (higher to lower priority)

  • ~/.local/share/arc2control/arc2emodules

  • /usr/local/share/arc2control/arc2emodules

  • /usr/share/arc2control/arc2emodules

Regardless of the path you choose an empty __init__.py file must be created under arc2emodules to allow custom modules to be loaded from there.

A typical tree structure for an emodule called testmodule located in %APPDATA%\arc2control would look like this

ArC2Control emodule directory structure including one emodule named testmodule
arc2emodules
├── __init__.py  ← this must exist for any emodule to be loaded
└── testmodule   ← toplevel directory of our emodule
    ├── __init__.py   ← module metadata and identifiers
    ├── testmodule.py ← module code with entry-point
    └── another.py    ← additional python source used by this module

Of course modules can span multiple files, can have compilation steps and anything else that might be required for your use case.

Anatomy of an emodule

Note

The module system for ArC TWO Control Panel heavily depends on the Qt framework and its Python bindings. Although an attempt has been made to make this guide as agnostic as possible a degree of familiarity with the Qt framework (in any language) would go a long way.

For an emodule to be loaded into ArC2Control two things must be true: (a) Its __init__.py must specify the entry point of the module and (b) the entry point must derive from BaseModule which essentially is a custom Qt6 QWidget with some extra quality of life improvements bolted in.

Going back to our example testmodule emodule this is how a correct __init__.py would look like

An example __init__.py file for an emodule
# Human readable name for the module - No whitespace
MOD_NAME = 'TestModule'
# A unique identifier
MOD_TAG = 'TSM00'
# A descriptive line of text
MOD_DESCRIPTION = 'Demonstrate the emodule functionality'
# Always False for modules residing outside the arc2control repository
BUILT_IN = False

# define the main class for this emodule; the entry point
from .testmodule import TestModule
ENTRY_POINT = TestModule

It should be mentioned that the MOD_TAG field must be a unique identifier for your module. There are no checks for identifier clash allowing you to possibly override built-in modules by reimplementing them as emodules to add or alter functionality. It is recommended that you avoid overriding internal tags unless you really know what you are doing. Things might fail spectacularly otherwise.

Once __init__.py is filled in you can proceed into developing the logic of your emodule. In this example the logic is implemented in testmodule/testmodule.py.

Anatomy of the main emodule file testmodule/testmodule.py
from PyQt6 import QtWidgets
from arc2control.modules.base import BaseModule
from . import MOD_NAME, MOD_TAG, MOD_DESCRIPTION


class TestModule(BaseModule):

    def __init__(self, arc, arcconf, vread, store, cells, mapper, parent=None):
        # calling superclass constructor with all the arguments
        BaseModule.__init__(self, arc, arcconf, vread, store, MOD_NAME, \
            MOD_TAG, cells, mapper, parent=parent)

        # build the UI
        self.setupUi()

        # make the button do something
        self.runButton.clicked.connect(self.onRunClicked)

    def setupUi(self):
        self.setObjectName('TestModuleWidget')
        self.gridLayout = QtWidgets.QGridLayout(self)
        self.gridLayout.setContentsMargins(0, 0, 0, 0)
        spacer00 = QtWidgets.QSpacerItem(0, 20, \
             QtWidgets.QSizePolicy.Policy.Expanding, \
             QtWidgets.QSizePolicy.Policy.Minimum)
        self.gridLayout.addItem(spacer00, 2, 1, 1, 1)
        spacer01 = QtWidgets.QSpacerItem(20, 0, \
             QtWidgets.QSizePolicy.Policy.Minimum, \
             QtWidgets.QSizePolicy.Policy.Expanding)
        self.gridLayout.addItem(spacer01, 7, 0, 1, 1)

        self.horizontalLayout = QtWidgets.QHBoxLayout()
        spacer02 = QtWidgets.QSpacerItem(40, 20, \
             QtWidgets.QSizePolicy.Policy.Expanding, \
             QtWidgets.QSizePolicy.Policy.Minimum)
        self.horizontalLayout.addItem(spacer02)

        self.runButton = QtWidgets.QPushButton(self)
        self.runButton.setObjectName("runButton")
        self.horizontalLayout.addWidget(self.runButton)

        spacer03 = QtWidgets.QSpacerItem(40, 20, \
             QtWidgets.QSizePolicy.Policy.Expanding, \
             QtWidgets.QSizePolicy.Policy.Minimum)
        self.horizontalLayout.addItem(spacer03)

        self.gridLayout.addLayout(self.horizontalLayout, 8, 0, 1, 2)
        self.label = QtWidgets.QLabel(self)
        self.label.setText("Example label")
        self.gridLayout.addWidget(self.label, 0, 0, 1, 1)

    def onRunClicked(self):
        print('Clicked!')

Most of the code above deals with setting up the UI, it is fairly standard Qt code. The most important part is probably the constructor of the class which takes a bunch of arguments. These are populated by ArC2Control when you activate the new panel on the main GUI so you should not need to deal with them directly. They will be connected to properties by the superclass, BaseModule and will be available to use from within your new emodule.

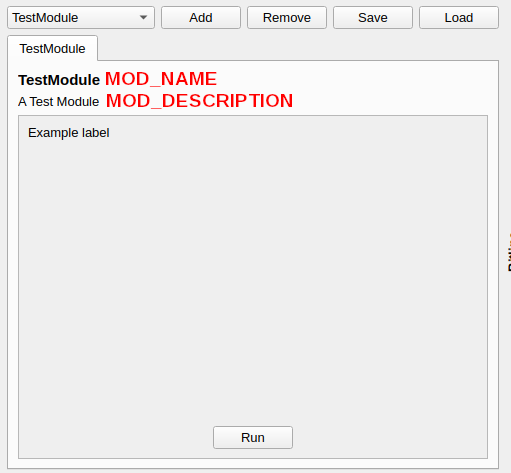

Starting ArC2Control again a new entry, TestModule, should be available from the experiment dropdown menu. Clicking add will activate the following panel and clicking Run will print “Clicked!” on your terminal.

A basic emodule panel

A basic emodule panel

As it is now the Run button does not do anything useful. We will modify it to perform a current read on the specified crosspoint if an ArC TWO is available.

Modified onRunClicked
def onRunClicked(self):
    # self.cells is a set containing the current selection, we will only
    # one if available

    try:
        cell = list(self.cells)[0]
    except IndexError:
        # nothing selected; break
        return

    # get wordline and bitline from the cell
    (w, b) = (cell.w, cell.b)
    # convert it into an ArC TWO channel using the self.mapper.wb2ch
    # wb2ch is a dict property populated automatically by ``BaseModule``
    # and points to the current channel mapper.
    (high, low) = self.mapper.wb2ch[w][b]

    # the current global read-out voltage; populated automatically by
    # ``BaseModule``.
    vread = self.readoutVoltage

    # self.arc is populated by ``BaseModule`` and will return ``None`` if
    # no ArC TWO is currently connected.
    if self.arc is not None:
        # do a current measurement
        current = self.arc.read_one(low, high, vread)
        # set channels back to the currently configured idle mode
        # (again populated automatically by ``BaseModule``)
        self.arc.finalise_operation(self.arc2Config.idleMode)

        print('I = %g A' % current)

The above example performs a current read on the first selected device and prints the result in the terminal. The ArC TWO related functionality is exposed by pyarc2 so consult its documentation for specific information.

Please note that ArC TWO doesn’t have any concept of crosspoints. It will do operations on any of the 64 channels which can be interconnected arbitrarily. In order to convert between abstract channels and something more meaningful like word- and bitlines a mapping mechanism is provided. Depending on your applications and active daughterboard different mappings might be relevant. On the code above the active cell coordinates are converted to the underlying channel numbers via the mapper property available on all subclass of BaseModule. The superclass code takes care of any changes in the mapper introduced by the user automatically so that self.mapper will always point to the currently active mapping scheme. You can read more about the mapper API or how to crate new mappings on a subsequent section.

Backgrounding operations

Warning

You should only run only one background operation at a time. Although ArC TWO provides locking semantics there is no fencing mechanism for synchronisation and running two command queues at the same time will lead to resulting data being received out of order.

The above example presents a relatively simplistic way of interacting with ArC TWO. However for more complex operations such as a voltage ramp, for example, implementing the logic of the operation in the callback will result into the main GUI blocking and becoming unresponsive (this is a common issue with UI toolkits in general). In order to avoid that and have some degree of interactivity we should introduce background operations. These essentially are background threads that are I/O bound (ie. slow but not very computationally expensive). Qt provides quite a sophisticated threading library and you can in fact start implementing operations right away with QThreads, however you still need to monitor ArC2Control for changes in read-out voltage, selections, etc. In order to avoid repetition a simple BaseOperation class is provided. Similar to BaseModule it will abstract away some boilerplate code and will expose several primitives as properties. You only need to implement its run() method and start the operation as any other QThread. Let’s add such a class to testmodule/testmodule.py.

Class TestModuleOperation added to testmodule/testmodule.py
import time
from arc2control.modules.base import BaseOperation
from PyQt6.QtCore import pyqtSignal

# signal emitted when a new value is received
newValue = pyqtSignal(float)
# signal emitted when the process has been completed
finished = pyqtSignal()

class TestModuleOperation(BaseOperation):

    def __init__(self, parent):
        super().__init__(parent=parent)

    def run(self):

        # pickup the first selected cell
        try:
            cell = list(self.cells)[0]
            vread = self.readoutVoltage()
            (high, low) = self.mapper.wb2ch[cell.w][cell.b]
        except IndexError:
            # or exit if nothing is selected
            self.finished.emit()
            return

        for _ in range(10):
            # do a current measurement
            current = self.arc.read_one(low, high, vread)
            # communicate the new value to the UI
            self.newValue.emit(current)
            self.arc.finalise_operation(self.arc2Config.idleMode)
            # artificial wait time
            time.sleep(1)

        self.finished.emit()

There are two particular points of note on the example above. First, the run function which implements the logic of the long running operation. This essentially does 10 subsequent readings on the first selected device with an 1 sec delay between them. Second it’s the introduction of custom signals as class attributes. Signals are used to communicate the status of the background operation to the main UI. This is similar to built-in signals such as clicked, triggered, etc. that are exposed by regular UI components but they carry custom values instead. In order to pick up a new value from the background thread one needs to connect the signal to a python function. Let’s update our onRunClicked function of TestModule to launch a measurement thread.

Modified onRunClicked to launch and monitor a thread
def onRunClicked(self):

    # callback called whenever a new value is produced
    def onNewValue(value):
        print('I = %g A' % value)

    # callback called when the thread exits
    def onFinished():
        self.operation.wait()
        self.operation = None

    try:
        if self.operation is not None:
            # an operation is currently running; abort
            return
    except AttributeError:
        self.operation = None

    self.operation = TestModuleOperation()
    self.operation.newValue.connect(onNewValue)
    self.operation.finished.connect(onFinished)
    self.operation.start()

The code above will launch TestModuleOperation in background. For illustration purposes we connect the two signals emitted to two nested functions, although these can be any type of function reference. It is important to note that we should make sure that we should only launch one operation at a time to avoid concurrent access to ArC TWO. In order to do that we start the operation only when self.operation is not defined at all or it’s None. Every time a new value is produced by the thread the onNewValue function is called which subsequently prints the value on the terminal. When the thread is finished the onFinished function is called. This will first wait for the thread to actually terminate (ie. the run function of the thread to return) and when that’s done the reference to the operation is set to None and the thread is finally dropped. A new operation can now be launched if required.

Storing data

Note

You can read about the storage system in detail on a follow-up section. Familiarity with HDF5 format or the h5py module will also be helpful.

In all of the examples above we just print the data to the terminal, we do not actually store any data. ArC2Control uses an HDF5-based file format to store all data produced by modules, either buit-in or external. Every emodule has access to the currently enabled dataset via the datastore property. As with other properties these are updated automatically whenever a change has occurred on the main GUI.

Data is stored on disk on a single HDF5 file with an hierarchical format. The data file contains all biasing history for every device as well as the latest current and voltage values of the full crossbar. Apart from that the datastore supports two types of experiment: (a) crosspoint-bound experiments that are specific to a single crosspoint and (b) synthetic experiments that span multiple crosspoints. Scenario (a) would probably be the most common if you only do individual device characterisation.

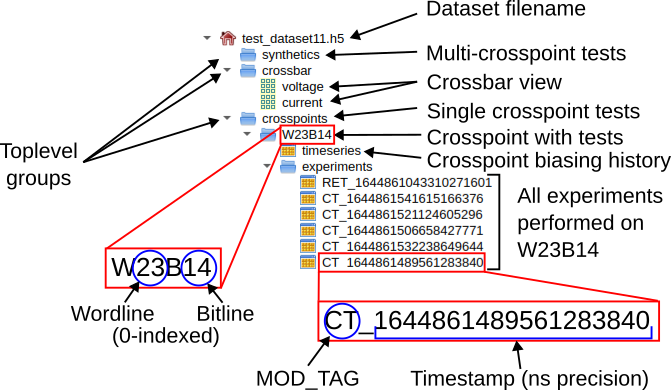

Structure of the HDF5 data file used by ArC2Control

Structure of the HDF5 data file used by ArC2Control

The data file is organised as shown in the figure above. The toplevel groups as well as the voltage and current crossbar view are always created automatically when a new dataset is created. Generally you should not need to create HDF5 groups, or even datasets, manually as calling make_wb_table() or make_synthetic_table() will create the necessary groups and tables automatically. Of course, if you know what you are doing, the actual h5py.Dataset is available through the dataset() method. Knowing these let’s modify TestModuleOperation to save the data to the datastore at the end of the operation.

Updated TestModuleOperation to save data at the end of the process.
import time
import numpy as np
from arc2control.modules.base import BaseOperation
from PyQt6.QtCore import pyqtSignal
from . import MOD_TAG

# signal emitted when a new value is received
newValue = pyqtSignal(float)
# signal emitted when the process has been completed
finished = pyqtSignal()

# this a numpy dtype to store data
_DTYPE = [('current', '<f4')]

class TestModuleOperation(BaseOperation):

    def __init__(self, parent):
        super().__init__(parent=parent)

    def run(self):

        # pickup the first selected cell
        try:
            cell = list(self.cells)[0]
            vread = self.readoutVoltage()
            (high, low) = self.mapper.wb2ch[cell.w][cell.b]
        except IndexError:
            # or exit if nothing is selected
            self.finished.emit()
            return

        data = np.empty(shape=(10, ), dtype=_DTYPE)

        for idx in range(10):
            # do a current measurement
            current = self.arc.read_one(low, high, vread)
            data[idx] = current
            # communicate the new value to the UI
            self.newValue.emit(current)
            self.arc.finalise_operation(self.arc2Config.idleMode)
            # artificial wait time
            time.sleep(1)

        self.storeData(cell.w, cell.b, data)
        self.finished.emit()

    def storeData(self, word, bit, data):
        store = self.datastore

        # make a new table to store the data
        dset = store.make_wb_table(word, bit, MOD_TAG, \
            data.shape, _DTYPE)
        # allocate values column-wise; in this case one column
        for field in _DTYPE:
            dset[:, field] = data[field]

The code above should be relatively straightforward: we create a numpy array to store the readings and at the end of the process we commit it to the dataset by column-wise assignment. It’s probably important to mention that HDF5 datasets are strongly typed and in h5py this is done via numpy dtypes for numpy structured arrays. It is convenient, in this case, to allocate an array to store the data and then broadcast it over the dataset. Of course, that’s only one way to store data; you could, for instance, allocate a dataset at the start of the process and save the data line-by-line which would work equally well. The datasets require an identifier, and although you could probably use anything, it is recommended that you use the MOD_TAG defined when initialising the emodule.

Communicating changes to the ArC2Control UI

So far we’ve seen how to apply an operation on a selected crosspoint and store the resulting data in the datastore. What you may have noticed, however, the main UI (essentially the graph panel) does not get updated with the latest data. This happens because the main UI does not have any insight into the inner workings of each module. In order to communicate changes to the UI and also update the global history of a device a module would need to emit some signals that will be picked up by the UI and update the interface. Similar to the custom signals, finished and newValue, that we defined in our TestModuleOperation the main ArC2Control UI also defines some signals that are globally available to modules. The full list of the signals defined from ArC2Control is available although for emodule development the most useful ones are (i) valueUpdate() to update the current voltage and current status of a crosspoint with a single value; (ii) valueBulkUpdate() that does the same using numpy arrays for multiple data updates and (iii) arc2control.signals.dataDisplayUpdate() to request a refresh of the plotting panels on the main UI. Let’s update our run function to update the crosspoint status on every loop and request a data display refresh at the end.

Updated TestModuleOperation to communicate data changes to the main ArC2Control GUI.
import time
import numpy as np
from arc2control.modules.base import BaseOperation
from arc2control.signals import valueUpdate, dataDisplayUpdate
from arc2control.h5utils import OpType
from PyQt6.QtCore import pyqtSignal
from . import MOD_TAG

# signal emitted when a new value is received
newValue = pyqtSignal(float)
# signal emitted when the process has been completed
finished = pyqtSignal()

# this a numpy dtype to store data
_DTYPE = [('current', '<f4')]

class TestModuleOperation(BaseOperation):

    def __init__(self, parent):
        super().__init__(parent=parent)

    def run(self):

        # pickup the first selected cell
        try:
            cell = list(self.cells)[0]
            vread = self.readoutVoltage()
            (high, low) = self.mapper.wb2ch[cell.w][cell.b]
        except IndexError:
            # or exit if nothing is selected
            self.finished.emit()
            return

        data = np.empty(shape=(10, ), dtype=_DTYPE)

        for idx in range(10):
            # do a current measurement
            current = self.arc.read_one(low, high, vread)
            data[idx] = current
            # communicate the new value to the UI
            self.newValue.emit(current)
            self.arc.finalise_operation(self.arc2Config.idleMode)

            # and update the crosspoint status; we've put 0.0
            # as a pulse width since this is a Read operation
            # that's also the reason why ``vpulse`` and ``vread``
            # are identical
            valueUpdate.emit(cell.w, cell.b, current, vread, 0.0,
                vread, OpType.READ)

            # artificial wait time
            time.sleep(1)

        # finally request a display refresh for our crosspoint
        dataDisplayUpdate.emit(cell.w, cell.b)

        self.storeData(cell.w, cell.b, data)
        self.finished.emit()

    def storeData(self, word, bit, data):
        store = self.datastore

        # make a new table to store the data
        dset = store.make_wb_table(word, bit, MOD_TAG, \
            data.shape, _DTYPE)
        # allocate values column-wise; in this case one column
        for field in _DTYPE:
            dset[:, field] = data[field]

In the updated example the valueUpdate() is emitted every time a reading is done. Our module has relatively slow repetition so updating values at every step is acceptable. However if you are pulling large amounts of data quickly from ArC TWO then it would probably make better sense to buffer the data and use valueBulkUpdate() on specific intervals instead. Finally, after the loop has finished, arc2control.signals.dataDisplayUpdate() is called to force refresh of the main UI graphing panel. You can do data display updates faster or slower depending on the amount and rate of data you are reading from ArC TWO. You should always keep in mind that very frequent UI updates will result in your main UI thread consuming too much CPU time so you should throttle the data display refreshes at a reasonable level. A few displays per second is probably fine, but many thousands will lead to massive slowdowns on the main UI thread.

Displaying data

One additional facility provided by ArC2Control emodules is the capability to display custom display and analysis widgets tied to a specific module. In the example below double-clicking on the CurveTracer entry in the device history tree will bring up a representation of the data for this specific experiment.

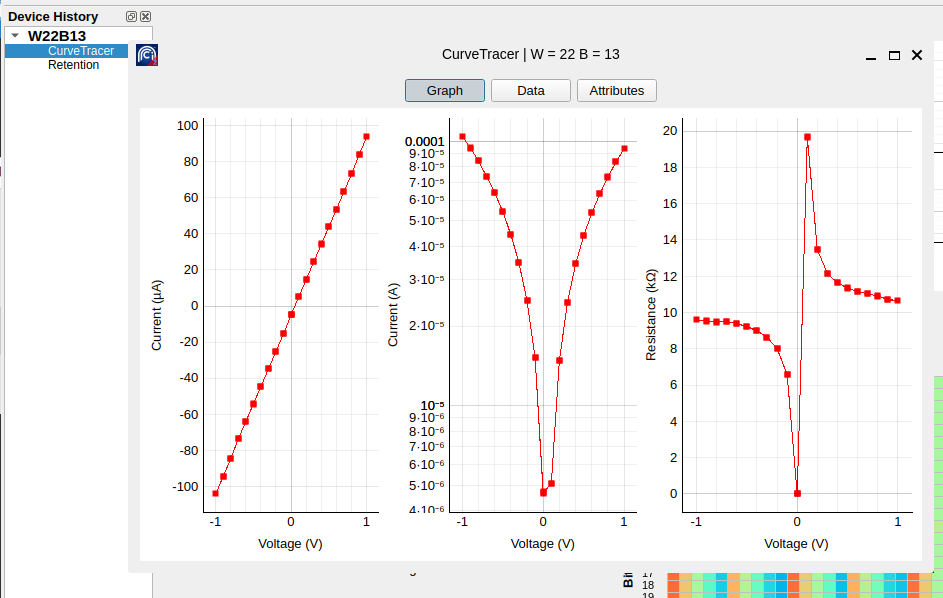

Double clicking a module name on the device history tree

Double clicking a module name on the device history tree will bring up a suitable data display widget

Data display widgets can be any type of widget that derives from QWidget. That means you can have full featured visualisation and analysis tools for your custom experiments. This facility is typically provided by the static method display provided by the main panel of the module, in this case our TestModule. The method must return anything that subclasses QWidget. or just a QWidget. In this exampe we will add a display method that plots our readings.

Added display function to TestModule to plot acquired data.
from PyQt6 import QtWidgets
from arc2control.modules.base import BaseModule
from . import MOD_NAME, MOD_TAG, MOD_DESCRIPTION
import pyqtgraph as pg

class TestModule(BaseModule):

    # rest of the implementation omitted for brevity

    @staticmethod
    def display(dataset):
        current = dataset['current']
        wdg = QtWidgets.QWidget()
        layout = QtWidgets.QVBoxLayout()
        gv = pg.GraphicsLayoutWidget()
        plot = gv.addPlot()
        plot.getAxis('left').setLabel('Current', units='A')
        plot.getAxis('bottom').setLabel('Reading #')
        plot.showGrid(x=True, y=True)

        plot.plot(range(0, current.shape[0]), current, pen='r')
        layout.addWidget(gv)
        wdg.setLayout(layout)

        return wdg

The only argument to the display method is the dataset associated with entry the user selected on the main GUI which is exactly the same dataset we created with the associated functions before. In this specific example above we construct a QWidget, add a layout and a graphing widget. We use pyqtgraph for plotting, which is the same library used by ArC2Control and it’s always available to the modules. Of course, depending on your requirements, you can use matplotlib or any other visualisation package. When the user activates the entry on the device history tree the widget returned by display will be put on window and displayed to the user, pretty much identically to the CurveTracer figure shown above.

Logging information

Regardless of the complexity of your module you will eventually have to log information. The humble print can get you quite far but you might need something more structured. Both arc2control.modules.base.BaseModule and arc2control.modules.base.BaseOperation expose the logger property that plugs into the main ArC2Control logging facility. You can then log information to the console in varying degrees of severity. The verbosity of the messages is controlled by an environment variable set before launching ArC2Control: ARC2CTRL_LOGLEVEL which can be any of critical, error, warn, info, debug with increasing degree of verbosity and decreasing severity. At any given logging level only message of equal or higher severity will be displayed. The default logging level is warn. With that in mind you can log information at varying severity levels like this

>>> self.logger.error('An error message; this will typically halt the module')
[ERROR] [TSM00] An error message; this will typically halt the module
>>> self.logger.warn('Something went wrong; results may be unreliable')
[WARNING] [TSM00] Something went wrong; results may be unreliable
>>> self.logger.info('Useful information')
[INFO] [TSM00] Useful information
>>> self.logger.debug('Detailed info about the module runtime')
[DEBUG] [TSM00] Detailed info about the module runtime

You can read more about Python’s logging facilities in the official documentation.

Final words

This concludes our tour of the module facility of ArC2Control. You can use this tooling to create your own experiments, simple or complex, to tailor the capabilities of ArC TWO to your own needs. You can find more details on the data store, channel mapping and signal APIs in the following sections.

API Reference

class arc2control.modules.base.BaseModule(arcref, arcconf, vread, store, name, tag, cells, mapper, parent=None)

Base Module for all ArC2Control plugins. A valid ArC2 plugin _MUST_ derive from this class to be properly loaded on startup. The base class will track all UI and instrument changes and exposes the relevant values via properies and methods. The constructor for the module will be typically called with the correct arguments when the user clicks the “Add” button on the experiment panel of ArC2Control

Parameters:

  • arcref – A reference to the currently connected ArC TWO

  • arcconf – The current ArC TWO configuration

  • vread – Currently configured read voltage

  • store – A reference to the currently opened datastore

  • name – The name of this module

  • tag – A short tag desribing this module

  • cells – A reference to the current crosspoint selection

  • mapper – A reference to the current channel mapper

addSerializableType(typ, getter, setter)

Register the setters and getters of a non standard widgets that should be serialized with exportToJson. Typically typ would be a custom widget and setter and getter are functions of that custom widget that load and set its state. Custom widgets must be registered with this function in order to be properly serialised to and retrieved from a file.

Parameters:

  • typ – The widget Python type

  • getter – The get function to retrieve its value

  • setter – The set function to set its value

property arc

A reference to the currently active ArC TWO instrument, or None, if no connection exists

property arc2Config

The current ArC TWO configuration

property cells

The currently selected cells

property datastore

A reference to the current datastore. See H5DataStore.

property description

Description of the operation of this module. This is typically displayed under the panel name in the main ArC2Control UI. Subclasses must implement this if they need to have a description visible (by default it’s empty).

exportToJson(fname)

Export all the adjustable children of this module to a JSON file. All individual widgets must set a unique name using setObjectName for this to work properly. Standard Qt Widgets and custom widgets that are made up from standard widgets are dealed with automatically. For bespoke widgets, these must be registered with addSerializableType().

Parameters:

fname (str) – The filename of the JSON file to export current module’s values.

property fullModuleName

The fully qualified python class name

loadFromJson(fname)

Load panel settings from a JSON file. Most common widget values are stored automatically but if custom widgets are present the subclass must register a setter and a getter method for the class using addSerializableType().

Parameters:

fname (str) – The filename to load values from

property logger

Returns the appropriately format logger for this module. See the python logging documentation for more.

property mapper

The current bit/word to channel mapping configuration

property readoutVoltage

The active read-out voltage

class arc2control.modules.base.BaseOperation(parent=None)

A standard background operation. This is what you probably need to use if you running a long operation using ArC2. It will connect all relevant signals (configuration, mapper, cell selection, etc.) and expose their corresponding values via properties. When a thread based on this operation is started the run method will be called and must be implemented by all subclasses of this class.

property arc

Reference to the currently connected ArC2 instrument (if any)

property arc2Config

The currently enabled ArC2 configuration

property cells

A set of tuples representing the currently selected crosspoints (word, bit).

property logger

Returns the appropriately format logger for this module. See the python logging documentation for more.

property mapper

The currently activated channel mapper (see ChannelMapper).

abstract run(self)
